Aluminium Ex-i Enclosures

Aluminium Ex-i Enclosures

Material cover: Aluminium

Material base: Aluminium

Material sealing: Silicone

Material screws: Stainless Steel V2 A

Silicone-free: No

Halogen-free: Yes

UV-resistant: Yes

Surface coating: Powder coating

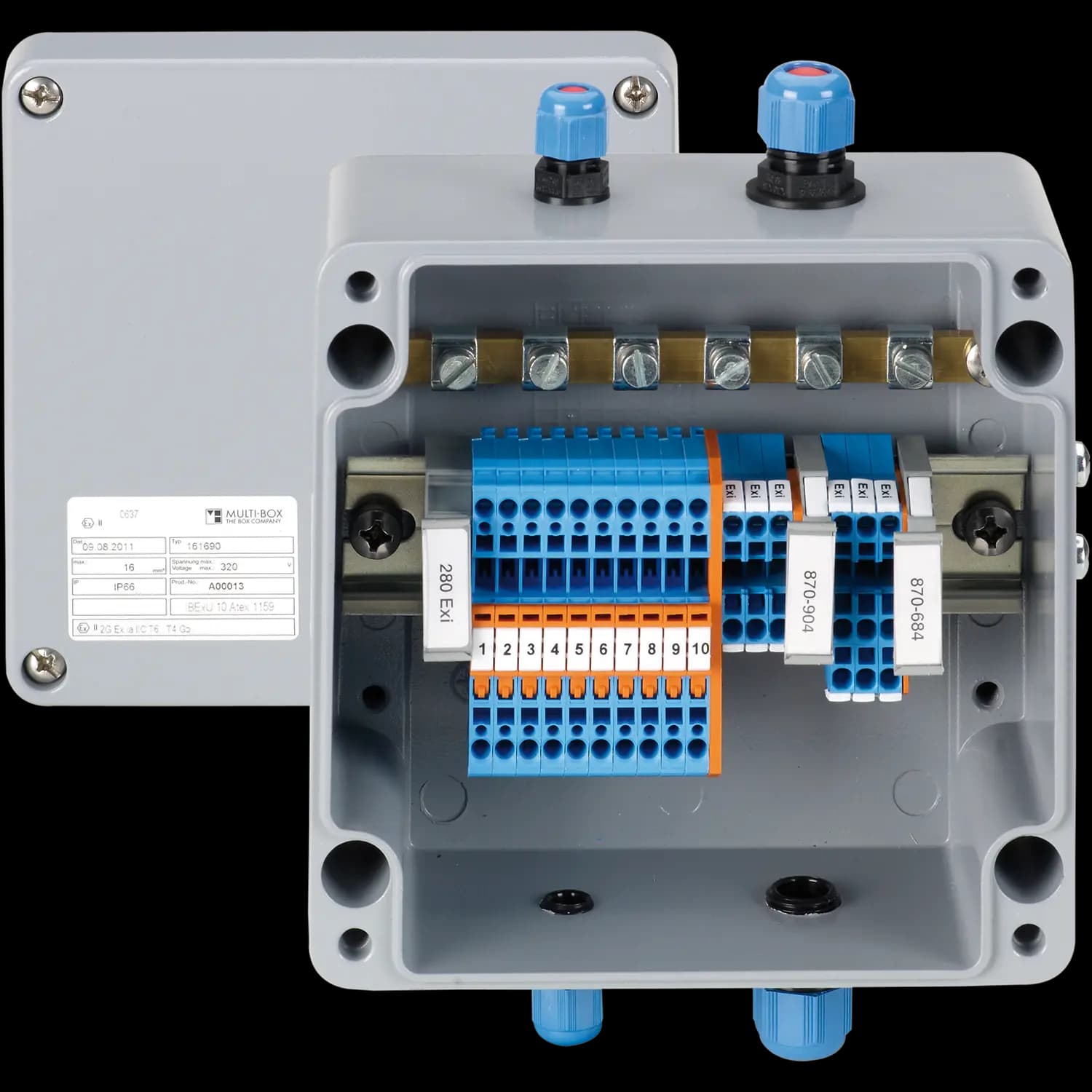

MULTI-BOX Aluminium-Ex i junction boxes are conform to all installation field requirements where explosive concentrations of gases and dusts can appear. Zones 1 and 2 as well as 21 and 22 and with temperature classes T4 to T6.

The enclosure protection of the intrinsically safe enclosures «i» is based on the low voltage connections in the enclosure, e.g. data or telephone lines. Thanks to external earthing and the very small amount of ignition energy and temperature rise, the Ex-i junction boxes can be assembled with the maximum amount of terminals, without any complications. By the exterior earthing, the enclosures are included in the potential compensation. This completely avoids electrostatic charging and sparks resulting from it.

The enclosure should also be fitted with visually identifiable intrinsically safe blue cable glands and terminals in order to give notification to the installer that intrinsically safe power circuitry is fitted within.


3131100200	MBA-Ex i 606030	58 mm	64 mm	34 mm	Request
3131100400	MBA-Ex i 906030	98 mm	64 mm	35 mm	Request
3131100600	MBA-Ex i 156030	150 mm	64 mm	34 mm	Request
3131100900	MBA-Ex i 708055	75 mm	80 mm	57 mm	Request
3131101100	MBA-Ex i 128055	125 mm	80 mm	57 mm	Request
3131101300	MBA-Ex i 178055	175 mm	80 mm	57 mm	Request
3131101400	MBA-Ex i 258055	250 mm	80 mm	54 mm	Request
3131105500	MBA Ex-i 101080	100 mm	100 mm	80 mm	Request
3131106500	MBA Ex-i 161080	160 mm	100 mm	80 mm	Request
3131106600	MBA Ex-i 201080	200 mm	100 mm	80 mm	Request
3131101600	MBA-Ex i 121265	122 mm	120 mm	65 mm	Request
3131101800	MBA-Ex i 121280	122 mm	120 mm	80 mm	Request
3131101900	MBA-Ex i 121290	122 mm	120 mm	90 mm	Request
3131102000	MBA-Ex i 221265	220 mm	120 mm	65 mm	Request
3131102200	MBA-Ex i 221280	220 mm	120 mm	80 mm	Request
3131102300	MBA-Ex i 221290	220 mm	120 mm	90 mm	Request
3131102400	MBA-Ex i 361280	360 mm	122 mm	80 mm	Request
3131104500	MBA Ex-i 141490	140 mm	140 mm	90 mm	Request
3131107500	MBA Ex-i 181490	180 mm	140 mm	90 mm	Request
3131108500	MBA Ex-i 201490	200 mm	140 mm	90 mm	Request
3131102500	MBA-Ex i 161690	160 mm	160 mm	90 mm	Request
3131104000	MBA-Ex i 261665	260 mm	160 mm	65 mm	Request
3131102600	MBA-Ex i 261690	260 mm	160 mm	90 mm	Request
3131102800	MBA-Ex i 361690	360 mm	160 mm	90 mm	Request
3131029000	MBA-Ex i 561690	560 mm	160 mm	90 mm	Request
3131103000	MBA-Ex i 202311	200 mm	230 mm	110 mm	Request
3131103100	MBA-Ex i 282311	280 mm	230 mm	110 mm	Request
3131103202	MBA-Ex i 332311	330 mm	230 mm	110 mm	Request
3131103300	MBA-Ex i 332318	330 mm	230 mm	180 mm	Request
3131103400	MBA-Ex i 402311	400 mm	230 mm	110 mm	Request
3131103700	MBA-Ex i 602311	600 mm	230 mm	110 mm	Request
3131103500	MBA-Ex i 403111	400 mm	310 mm	110 mm	Request
3131103600	MBA-Ex i 403118	400 mm	310 mm	180 mm	Request
3131103800	MBA-Ex i 603111	600 mm	310 mm	110 mm	Request
3131103900	MBA-Ex i 603118	600 mm	310 mm	180 mm	Request
